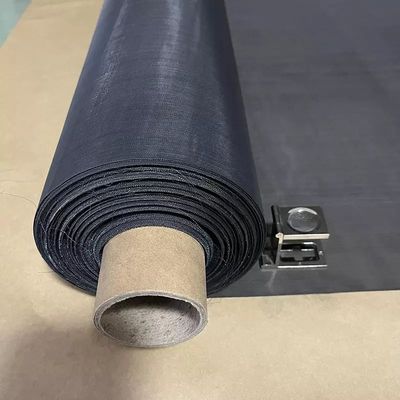

N4 N6 N8 Pure Nickel Woven Wire Mesh 10 20 30 40 60 80 100 150 180 200 325 Mesh
| Place of Origin | ANPING, CHINA |
|---|---|
| Brand Name | JIUFU |
| Certification | ISO |
| Model Number | JF-10040 |
| Minimum Order Quantity | 10 Square Meter |
| Price | negotiation |
| Packaging Details | Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet |
| Delivery Time | 7-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10000 Square Meter per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nickel Woven Mesh | Weave Type | Plain Weave, Twilled Weave |
|---|---|---|---|
| Material | N4 N6 N8 Pure Nickel | Wire Diameter | 0.025-2.0mm |
| Mesh Count | 10 20 30 40 60 80 100 150 180 200 325 Mesh | Width | 1m 1.2m 1.5m |
| Feature | Corrosion Resistance, Acid And Alkali | Application | Radiation Shielding |
| Length | 0.5m-30m | Hole Size | Min 0.3×0.6mm, Max 30×60mm |
| Highlight | 325 Mesh Nickel Woven Wire Mesh,Pure Nickel Woven Wire Mesh,Pure Nickel Woven Mesh |
||
Product Description
10 20 30 40 60 80 100 150 180 200 325 Mesh N4 N6 N8 Pure Nickel Woven Wire Mesh
Benefits of using Nickel Wire Mesh:
1. High electrical conductivity
2. Good electrocatalytic activity
3. Adequate selectivity
4. Long-term mechanical stability
5. Corrosion resistance
6. Dimensional stability
7. Prolong chemical stability
8. Availability and economical
9. Health safety
10. Uninterrupted flow of electrolyte liquid
| Product Name | Nickel Woven Mesh |
| Weave Type | Plain Weave, twilled weave |
| Material | N4 N6 N8 Pure Nickel |
| Wire Diameter | 0.025-2.0mm |
| Mesh Count | 10 20 30 40 60 80 100 150 180 200 325 Mesh |
| Hole Size | min 0.3×0.6mm, max 30×60mm |
| Width | 1m 1.2m 1.5m |
| Length | 0.5m-30m |
| Feature | corrosion resistance, acid and alkali |
| Application | Radiation Shielding |
Nickel Wire Mesh Specification Table:
|
Nickel Wire Mesh
|
|||
|
Mesh count
|
Wire diameter(mm)
|
Aperture(mm)
|
Max width(m)
|
|
10
|
0.6
|
1.94
|
1.6
|
|
20
|
0.4
|
0.87
|
1.6
|
|
30
|
0.3
|
0.55
|
1.6
|
|
40
|
0.23
|
0.4
|
1.6
|
|
50
|
0.2
|
0.31
|
1.6
|
|
60
|
0.15
|
0.27
|
1.6
|
|
70
|
0.12
|
0.24
|
1.6
|
|
80
|
0.13
|
0.19
|
1.6
|
|
90
|
0.12
|
0.16
|
1.6
|
|
100
|
0.1
|
0.15
|
1.6
|
|
120
|
0.09
|
0.12
|
1.6
|
|
150
|
0.063
|
0.11
|
1.6
|
|
180
|
0.053
|
0.01
|
1.6
|
|
200
|
0.053
|
0.07
|
1.6
|
|
250
|
0.04
|
0.063
|
1.6
|
|
300
|
0.04
|
0.044
|
1.6
|
Nickel Wire Mesh Applications:
The nickel woven wire mesh is widely used as the filtration material in the mining, oil, chemical, food, pharmaceutical, machine and other fields. The nickel woven wire mesh has high electrical conductivity, so it can be used in electronics. The nickel woven wire mesh also can be used for battery production.
